AC OUTLET

At power on there is a 1 second delay start time between channels - reverse is true in power down mode Front Panel Independent channel one touch power switch Single bypass switch Single all off power switch Rear Panel 8 x power output connectors 6.5mm link connectors

TYPE : SEQUENCE POWER 8 MULTIPLE WITH GROUND OUTLET : 8 Outlets ; 3P 250VAC/50Hz, 15AMP RELAY OUTPUT : 30AMP/CH AUTO ON/OFF DELAY : 2 Sec. DIMENSIONS (WxHxD) : 432x44x303 MM. 1U ; 6.1KG.

Instrument Type AC. Outlet Multiple Rack Display Monitor Digital Volt Meter 100-500 VAC Digital Amp Meter 0-30 A. AC. Outlet Quantity 11 Outlet with Ground + 1 USB Port Maximum Rating 30A. 250VAC. 50Hz. Single Breaker Connector 30A. 250VAC.3 Terminal With Ground USB Power Supply 5 V.1 A Protection Circuit Breaker Combination LED Lamp Digital Volt Meter 100 – 300 VAC. W x H x D (mm.) 482 x 55 x 150

AC. Outlet Multiple Rack Diisplay Monitor Digital Volt Meter 100-300 VAC.Show AC. Outlet Quantity 8 Outlet +1 Monitor Outlet (9 Outlet)with Ground Maximum Rating 30A. 250VAC. 50Hz. Single Breaker Connector 30A. 250VAC.3 Terminal With Ground Protection Circuit Breaker Noise Capacitor MOV Surge Suppressor Combination LED Lamp Digital Volt Meter 100 – 300 VAC. Wire Size/Lenth 3 x 1.0 SQ.mm./4 M W x H x D (mm.) 482 x 55 x 130 Weight 2.1 Kg.

Outlet 10 Outlet Builtin Volt meter Current Rating 15 Amp Overload Protection 15A circuit breaker Input Voltage 180-260V AC, 50Hz Noise Capacitor Yes Surge Suppressor Yes

Outlet 10 Outlet Current Rating 15 Amp Overload Protection 15A circuit breaker Input Voltage 180-260V AC, 50Hz Noise Capacitor Yes Surge Suppressor Yes

TYPE : BREAKER OUTLETS 8 MULTIPLE WITH GROUND OUTLET : 8 Outlets ; 3P 250VAC/50Hz, 15AMP PROTECTION : Circuit Breaker 1/30AMP

TYPE : SEQUENCE POWER 8 MULTIPLE WITH GROUND OUTLET : 8 Outlets ; 3P 180-260VAC/50Hz, 15AMP RELAY OUTPUT : 30AMP/CH AUTO ON/OFF DELAY PRESET: 1 Sec./2 Sec./3 Sec.

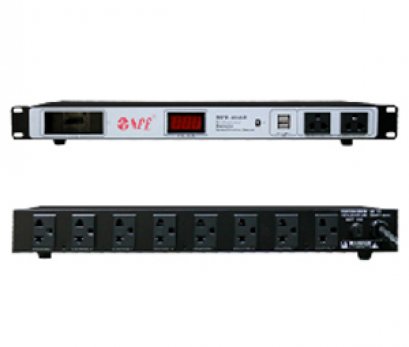

NPE MPR-1015D Multiple Power Outlet Rack TYPE : BREAKER OUTLETS 8 MULTIPLE WITH GROUND OUTLET : 8 Outlets ; 3P 250VAC/50Hz, 15AMP PROTECTION : Circuit Breaker 1/30AMP
